Mobile Light Towers
Nomadic LED

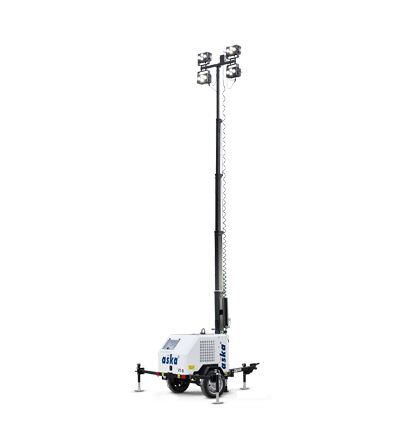

Introducing the ASKA Nomadic - The Ultimate Portable Lighting Solution! With powerful luminaries, a reliable diesel engine, and a quick mast erection system, it offers impressive lighting capabilities for various applications.
lamps
400W LED X 4 NOS
Light Coverage
6150 Sq. M.
Engine
Yanmar Three Cylinder Japan
Total Lumens Output
224000
Download Brouchure
Enquiry NowDescription
VT-8 400W LED - Y3 lighting system has Yanmar Japan water cooled engine is designed with a bunded fuel tank, which helps to ensure the safe storage of fuel. It also features a manually operated winch with interlocked operations, which makes it easier for users during operations.
| Type of Lamp Fittings | Aluminium Oval |
|---|---|
| Floodlights / Lamp | Metal Halide |
| Wattage | 4 No's x 1000 W MH |
| Total Lumens Output | 440000 Lumens |
| Lumens per Watt | 110 Lm / W |
| Light Coverage in Square Metres | 20000 Sq m (Approx. 5 acres) |
| Engine Make | Yanmar, Japan |
|---|---|
| Engine Model | 3T NV80-IGE |
| Engine Horsepower | 11(Continuous), 12 (Stand by) |
| Engine Power (KW) | 8.2 (Continuous), 9 (Stand by) |
| Engine Speed (rpm) | 1500 |
| No of Cylinders | 3 |
| Emission Norms | CPCB-2 |
| Fuel Tank Type | Bunded Tank |
|---|---|
| Fuel Tank Capacity | up to 120 Litres |
| Fuel Consumption ( Approx.) | 1.7 Litres / Hrs |
| Alternator Make | NSM / LINZ-Alumen / Mc Alte Italy (Brushless) |
|---|---|
| Rated Output | 8 kVA |
| Alternator Degree of Protection | IP20 |
| Rating Voltage (Volt) | 230 Volt |
| Auxiliary Power | 16 amp. Maximum |
| Type | Manual operation winch and each operation interlocked |
|---|---|
| Maximum Height (Metres) | 8 |
| Number of Mast Section | 5 |
| Mast Rotation | 359° with locking system & manual operation |
| Mast Erection Time | < 2 minutes |
| Wind Speed Stability | 110 Km / hr |
| L x W x H (Minimum) in mm | 1700 x 1680 x 2500 |
|---|---|
| L x W x H (Maximum) in mm | 2340 x 3060 x 7800 |
| Dimensions for Transport in mm | 1710 x 1690 x 2510 |
| Weight in kgs | 780 (Approx.) |
