High Pressure Watermist & CAFs
Combo Unit

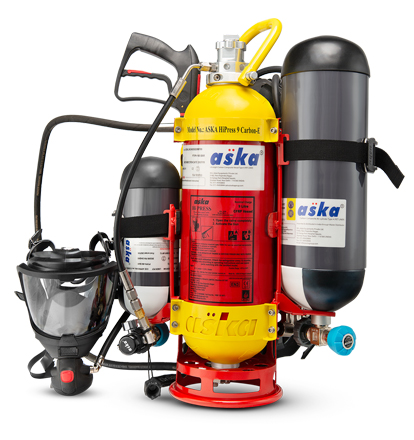

Introducing the Combo Unit with SCBA (Self-Contained Breathing Apparatus), a lightweight firefighting system designed for efficient fire control.
Working Pressure
300 Bar
Test Pressure
450 Bar
Operating Temperature
-40°C to +60°C
Working Duration
45 minutes
Download Brouchure
Enquiry NowDescription
Aska High Pressure water mist & CAFS combo unit having special attachment as breathing appratus (SCBA) for the safety & convenience of the fire fighter against smoke consequent to the fire hazards along with special Type-4 pet liner corbon composite made with Nanotubes cylinders for carrying Oxygen approved by PESO.
Features
- Pet liner corbon composite made with Nanotubes cylinders for carrying Oxygen approved by PESO.
- Complied with EN standard
- Ergonomically designed back plate & face mask meeting applicable standards.
- Operational Weight between 26-30 Kg
- Breathing air filling capacity upto 6.8 litres
- Most effective for fire fighting during smoky environment
| Conformity to Standard | EN12245:2009+A1:2011 | |
|---|---|---|
| Material of Breathing Air Cylinder Liner | Type 4 Pet liner Carbon Composite made of Nano Graphene Tubes PESO Approved | |
| Type | IV Generation | |
| Breathing Air Filling Capacity | 6.8 Ltr | |
| Approx. Empty weight without valve and Pressure Gauge | 2.8 KG | |
| Approx. Filled weight with valve and Pressure Gauge | 5.50 KG | |
| Working pressure | 300 bar | |
| Test Pressure | 450 bar | |
| Neck Screw thread as per IS:3224 or equivalent PN-ISO 724 | M 18 X 1.5 Valve | |
| CE Marking | Yes, CE 1017 | |
| Operating Temperature | -40°C to +60°C | |
| Test Report | TUV –SUD | |
| PESO Approved Service / Shelf Life | 20 Yrs and NO LIMIT LIFE as per TUV and EN Standard 12245+A1 Clause No. 5.2.6.1 | |
| Working Duration | 45 minutes | |
| PESO Approved Valve Weight | Approx 625 gm ± 5% | |
| Valve thread | M18 x 1.5 | |
| Certification / Approval Of SCABA | EN 137 2006 Type 2 & As per new regulation EU 2016 / 425 | |
|---|---|---|
| Certifications / Approval for face mask | EN 136 Class 3 | |
| Input pressure (bar) | 0 – 300 | |
| 4 Nominal 1st stage output pressure ) | 7.5 Bar | |
| 1st stage output flow (l / min) | > 1000 | |
| LDV output flow (l / min) | > 400 | |
| Whistle activation pressure (bar) | 50 – 60 bar | |
| Whistle sound level (dBA) | > 90 | |
| Weight | Max 4 kg | |
| Fire Extinguisher Operating Pressure | 37 Bar |
|---|---|
| Minimum Length of Hose | 1.30 mtr |
| Air Cylinder Capacity | 2L x 300 Bar |
| Material of Air Cylinders | Type 4 Pet liner Carbon composite made with Aramid Carbon fibres |
| Service Life of Air Cylinder PESO Approved | 20 years |
| Weight Of Extinguisher Gun | 750 gms. (Approx.) |
| Minimum Functional Time With Continuous Jet | 26+ sec. |
| Lancing Distance With Jet Mode | More than 12 mtr |
| Extinguishing Agent | Special Foam (Concentration 3% or 6%) |
| Propellant | Compressed Air |
| Fire Rating | A55, B233, E1000V |
| Weight | 20kg max |
