Portable Inflatable Lighting System
Portable inflatable Lighting System
MODEL-AIT4500 GENERAL
lamps
400W metal halide lamp
Light Coverage
Up to 10,000 sq. meters with in 3 minutes
Engine
Briggs & Stratton / Honda
Total Lumens Output
42,000 Lumens
Download Brouchure
Enquiry NowDescription

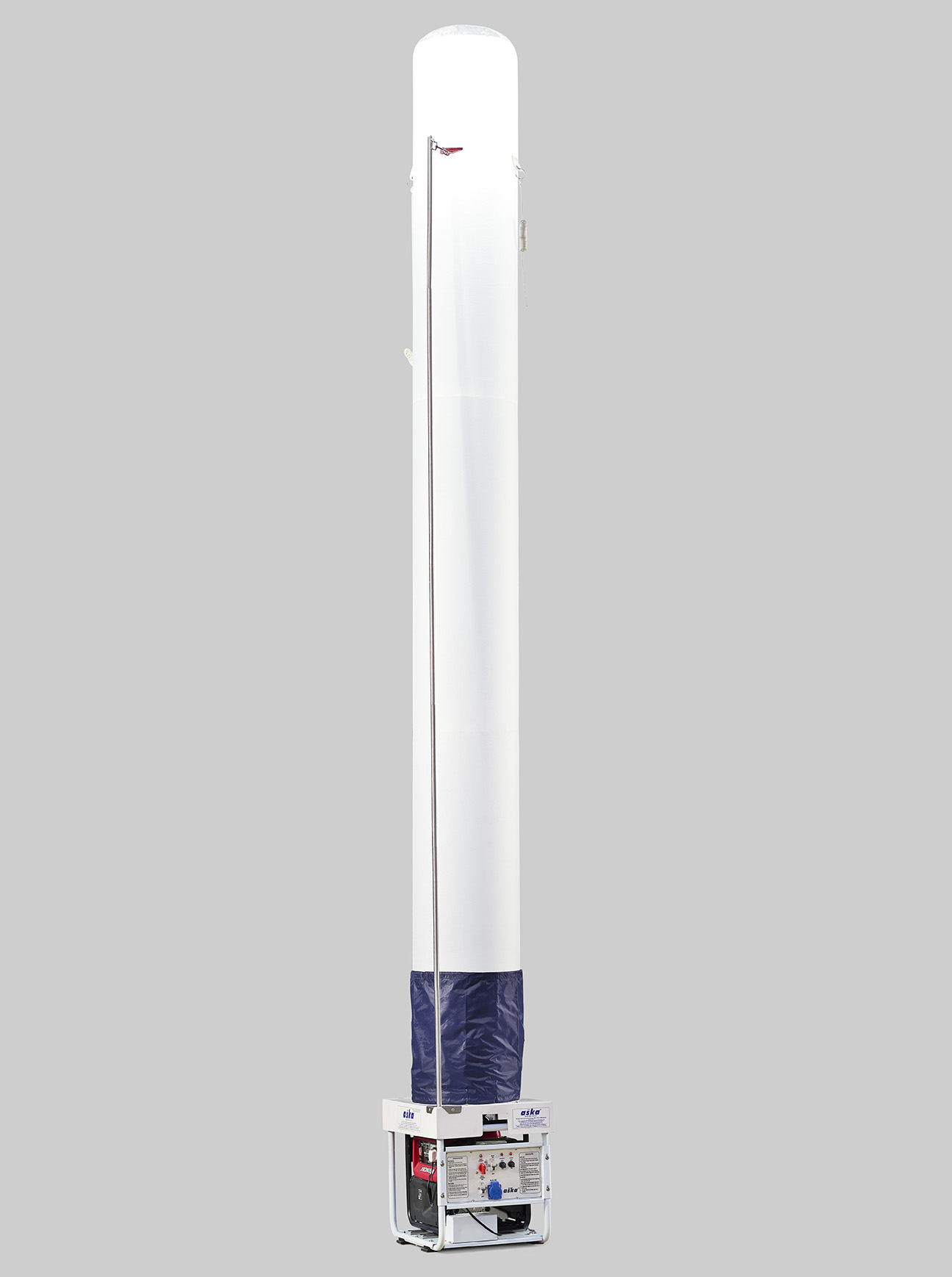

The Portable Inflatable Emergency Lighting System is designed for ease of transportation and setup, featuring a built-in 1200VA/750 VA engine and generator (Genset) as a portable power source. It includes two blowers and a 400W metal halide lamp.
The blower inflates cloth at a height of 4.5 meters from the ground level on switching on the Genset. It can illuminate an area of up to 10,000 square meters.
- Applications for illuminating an area during and after fire fighting operation
- For rescue operations during dark hours
- For disaster management during dark hours
Features
- Easy to operate & handle
- Excellent illumination with high-power Metal Halide lamps
- The most fuel-efficient fuel engines
- Illumination up to 10,000 sq. meters within 3 Minutes
| Closed system [LxBxH] mm (Nominal) approx. | 545 x 450 x 500 mm |
|---|---|
| Height | 4.5 Metres |
| Minimum weight of the system (without fuel and storage box) | 45 Kg |
| Genset details | 4-Stroke |
| Generator rated output (VA) 230V/50Hz | 1200VA/750 VA |
| Fuel tank capacity (L) | 8.0 L / 3.6 L |
| Continuous operating hours | 10+ Hours/5.5 Hours |
| Starting system | Recoil |
| Light source | 400W Metal halide lamp |
| Lamp light output (brightness) | 42,000 Lumens |
| Outside wind speed at which the balloon shall remain erected | 45 km/hr and 70 km /hr) with stabilizing /supporting rods |
| Time for tower extension/ inflation | 60 Sec |
| Time to pack "maximum deflation time including repacking time | 4 Minutes |
| No. of air blowers of suitable rating | Two |
| Balloon heights in inflated condition from the base plate | 4.5 Metres |
| Light up area (Approx.) | 10000 Sq. meters |
